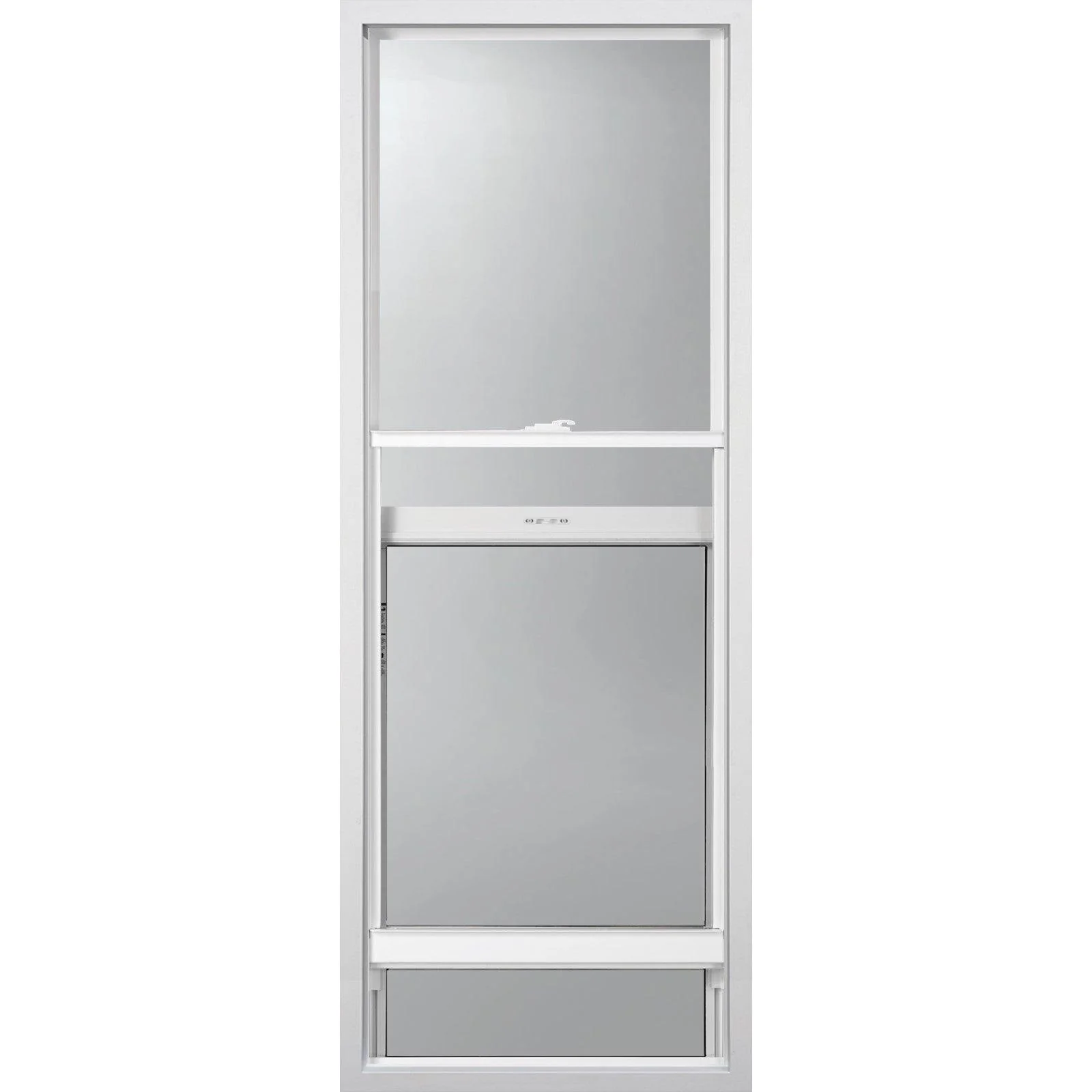

Venting 1 Lite Glass and Frame Kit (Full Lite)

Door Glass and Frame Kit

Venting door glass is a great option for kitchen doors or any area where you want the option to let in a nice breeze. Our venting door glass features a removeable screen and 7 height adjustments to allow for desired airflow.

Kit includes door glass, removeable screen, inside and outside door glass frame set, screws, and screw caps.

Installs with screen (vent) on the bottom and the venting area is roughly 40% of the lower portion of the unit.

Measurements

Standard Size:

• Frame outside dimensions: 24" x 66" (replaces frames 23 1/2" to 24" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 23" x 65"
• Glass dimensions: 22" wide, 64" tall

Narrow Size:

• This size is typically found on narrow (30" and narrower) doors
• Frame outside dimensions: 22" x 66" (replaces frames 21 1/2" to 22" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 21" x 65"
• Glass dimensions: 20" wide, 64" tall
