Prehung Smooth Fiberglass Sidelite Unit (Half Sidelite)

Replace an existing sidelite or combine with our prehung door systems for a grand entryway (door plus single sidelite or door with two sidelites, one on each side).

Ships on a pallet, prehung and ready to install. This is not your big-box store, builder-grade sidelite. Our premium fiberglass sidelite panel and framing system is built to seal tightly against the elements, impress your neighbors, and last a lifetime.

Brickmould sold separately.

We recommend 4 9/16" jamb depth if you have 2x4 construction and 6 9/16" if you have 2x6 construction.

Sizes & Measurements:

Style: Half Sidelite

12" x 80" (nominal size):

• Unit size: 13.5" width x 81.75" height (referred to nominally as a 12", 1/0, or 1-foot-0-inch-wide by 80" or 6' 8" tall panel)
• Rough opening: fits 14" to 14.5" width and 82" to 82.5" height

• Panel: 11.875" width x 79.0" height x 1.75" thick

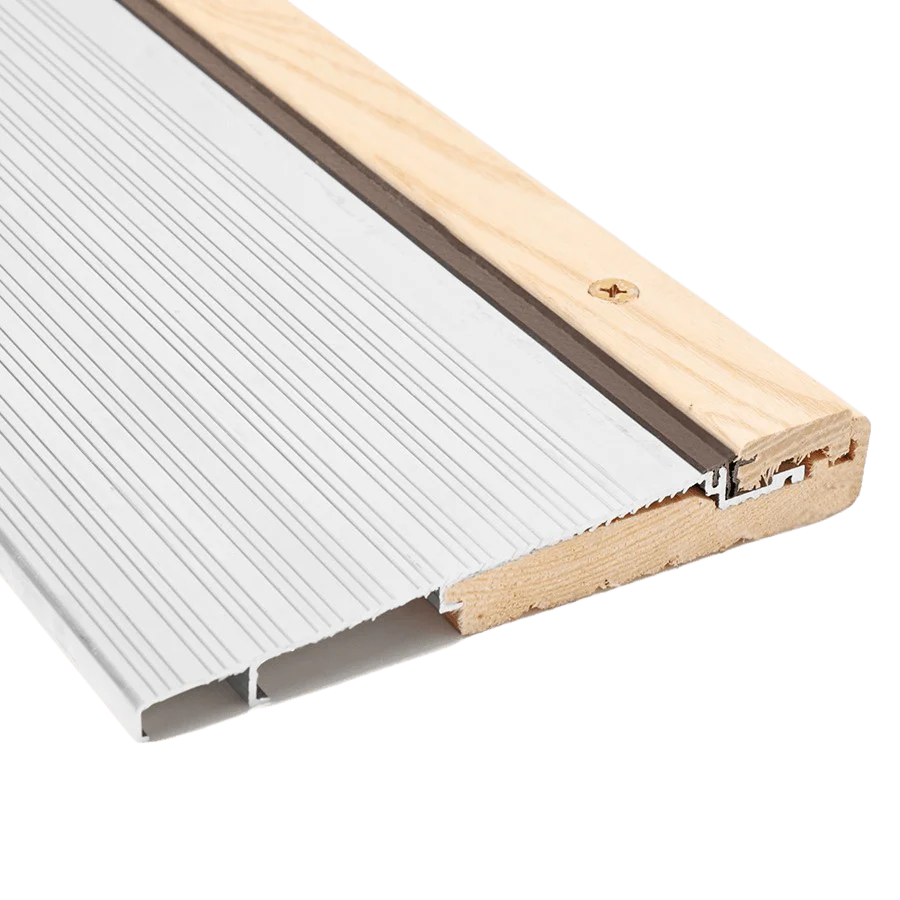

• Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)

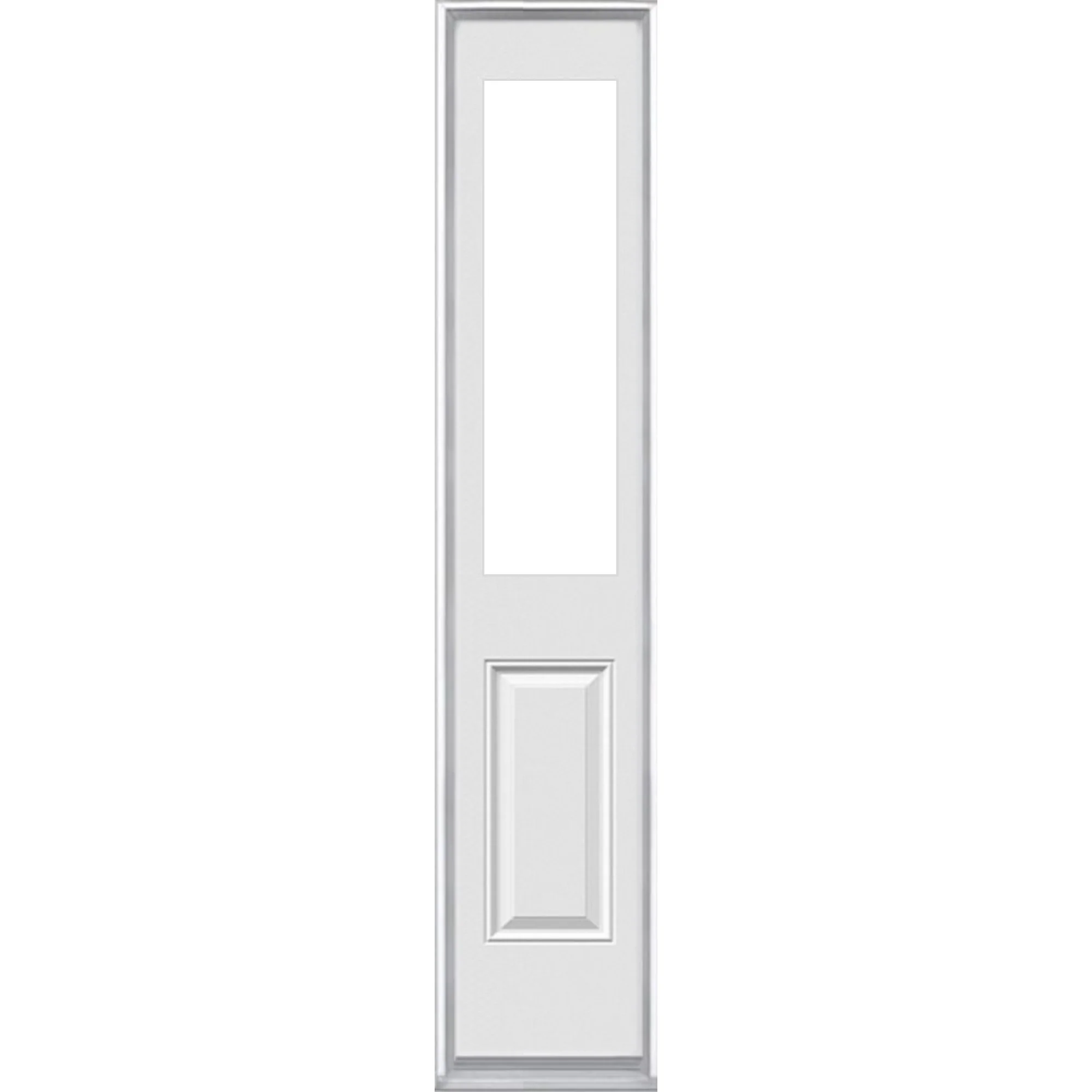

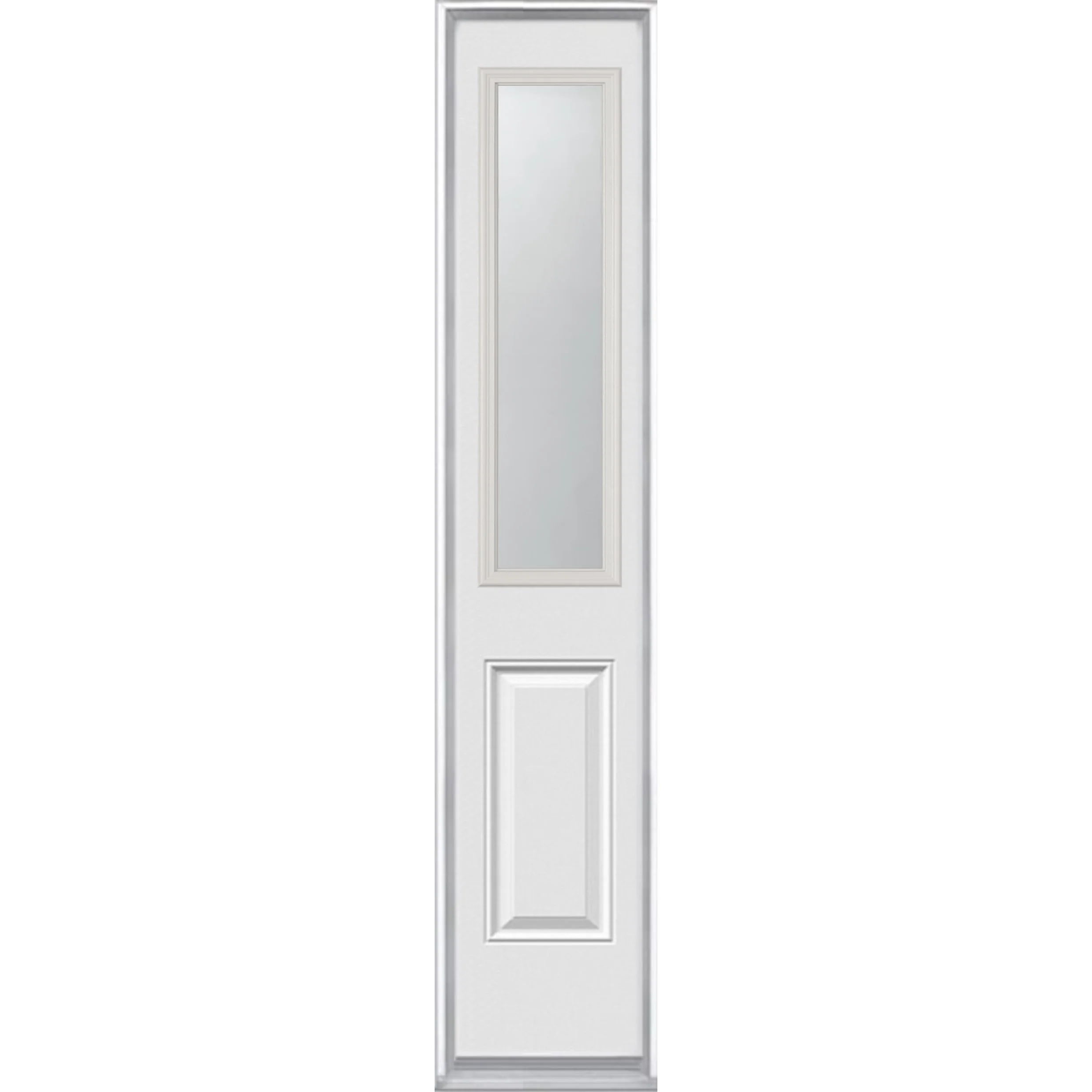

• Select with or without glass. With glass comes with Clear 1 Lite Half Sidelite 8" x 36" glass installed in a 9" x 37" cut out. Without glass means the panel will come with a 9" x 37" cut out, which is the correct size for standard 8" x 36" Half Sidelite Glass, which has an outside frame size of 10" x 38".


14" x 80" (nominal size):

• Unit size: 15.5" width x 81.75" height (referred to nominally as a 14", 1/2, or 1-foot-2-inch-wide by 80" or 6' 8" tall panel)
• Rough opening: fits 16" to 16.5" width and 82" to 82.5" height

• Panel: 13.875" width x 79.0" height x 1.75" thick
• Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
• Select with or without glass. With glass comes with Clear 1 Lite Half Sidelite 8" x 36" glass installed in a 9" x 37" cut out. Without glass means the panel will come with a 9" x 37" cut out, which is the correct size for standard 8" x 36" Half Sidelite Glass, which has an outside frame size of 10" x 38".
